Description:

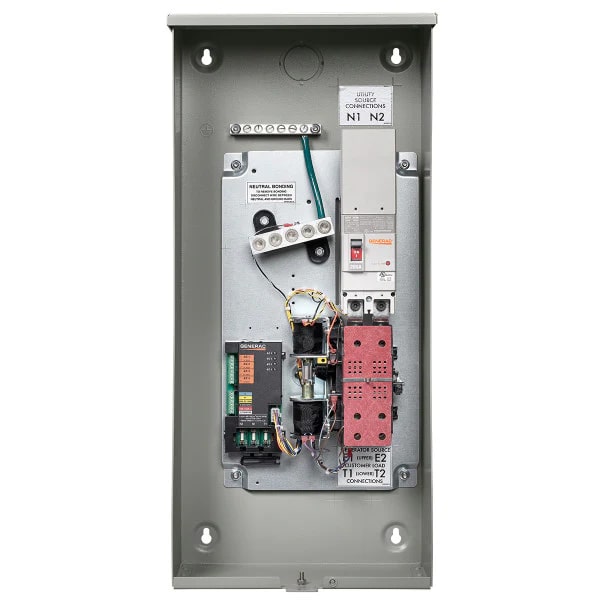

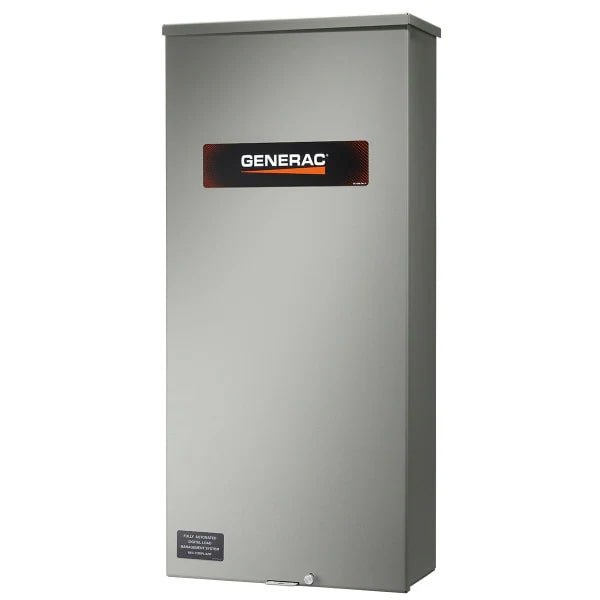

• Generac 200-Amp Auto Smart Transfer Switch w/ Power Management
• Compatible with Evolution™ or Nexus™ generator controllers
• Improved Design
• 35% Smaller footprint & greater branch circuit capacity
• Integrated 20-Circuit Load Center (Breakers Not Included)
• 40-Circuit capacity with the use of tandem breakers
• For use with Siemens, Murray, Square D and Eaton 1" breakers
• Accepts GFCI, AFCI and tandem breakers
• Digital Power Management Technology (DPM)
• Allows your generator to work smarter, not harder
• Be Smart....Get More Out Of Your Generator
• Cycles power on and off as needed for different appliances
• Manage Up To (4) Individual HVAC Loads - No Hardware Req.
• Great for homes with multiple Air conditioners (24 VAC controlled)
• Up To (8) Smart Management Modules (SMM) (Sold Separately)
• Frequency (Hz) monitoring design, no control wire required
• Versatile design, easily prioritize loads & lock-out non-essential loads
• Service Entrance Rated (Load Side & Line Side Disc. Breakers)
• Installs between main meter & service panel
• NEMA 3R Indoor/Outdoor Rated
• Aluminum, wall mountable weather-proof enclosure
• Electrostatically applied and baked powder coating paint (Gray)
• Tech Spec Summary: Only For Use w/ Generac Generators
• Load Transition Type: Open Transition
• Withstand Rating: 22,000 Amps --- Lug Range: 2/0 - #14
• 5-Year Limited Warranty

Specifications:

• Product Category: Generator Transfer Switches
• Weight: 45 lbs
• Certification: ETL
• Made in USA: Yes
• Consumer Warranty: 5 Years
• Product Length: 38.5 in
• Product Width: 17 in
• Product Height: 8 in
• UPC: 696471076219

Electrical Specs:

• Voltage: 120/240 Single-Phase
• Frequency: 60 Hertz
• Rated Watts: 48,000 Watts
• Rated Amps: 200 Amps
• Transfer Switch Amperage: 200 Amps
• Max Circuits: 20
• Enclosure: NEMA 3R
• Transfer Switch Style: Service Disconnect
• ATS Load Prioritizing: Built-In
• ATS Load Shedding: Built-In
• ATS Poles: 2 Poles
• ATS Service Disconnect: Yes
• Max Utility Input: 200 Amps
• Max Generator Input: 200 Amps
• Maximum Wattage: 48,000 Watts
• UL Listed: Yes
